Tuya Smart Zigbee Socket Switch Module Kwh Meter Energy Monitor Timer 16A Overload Protect Support Google Home Alexa Zigbee2Mqtt

Other ZigBee Meters and Switch You May Need, All requires Tuya ZigBee Gateway to Work

ZigBee Garage Door Controller
ZigBee Din Rail Meter Switch 16A
ZigBee Din Rail Meter Switch 80A

NEW ARRIVAL

Tuya New ZigBee Mini Size Smart Energy Monitor Electricity Statistic Relay Breaker Socket Module 16A
Please make sure you have Tuya ZigBee Gateway, it's must required for the module to work.

Specification & Multi Function Features

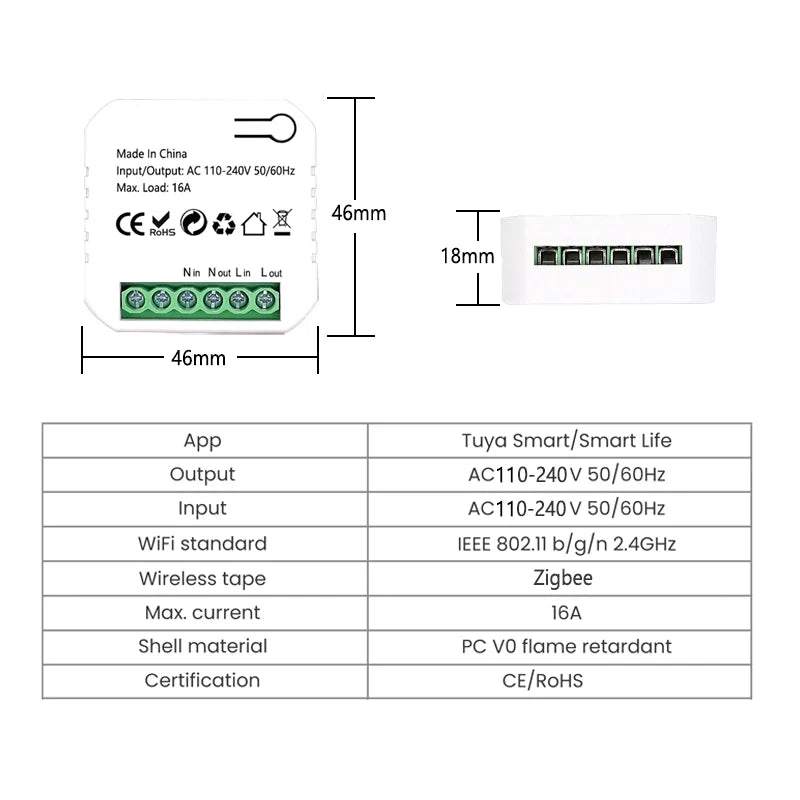

Specifications:
Wide Range Voltage Input/Output :
100V-240VAC 50/60Hz
Max. Load: 16A
Wireless tape：2.4G WiFi
WiFi standard: IEEE 802.11 b/g/n 2.4GHz
Wireless Type: ZigBee, (Tuya ZigBee Gateway Is Must to Work)
Tiny Size：46*46*18mm
Shell material: V0 Flame retardant PC
App: Tuya Smart/Smart Life
Works with: Google Home Amazon Alexa
Installation: Din Rail Mount or Build in Wall Box
Device Status after Power Back On: Default ON, Default OFF, or Remember last status
Overload Protection: if current over 17A, Turn off Automatically
Certification：CE/RoHS
Feature:
Energy monitor, KWh Meter , Record Power Consumption, Electricity Statistic
App remote control and Voice Control
Timing Schedule/countdown/Circulate/Random
Group control
Share device to other family member
Smart scenes, automation
16A load most household devices

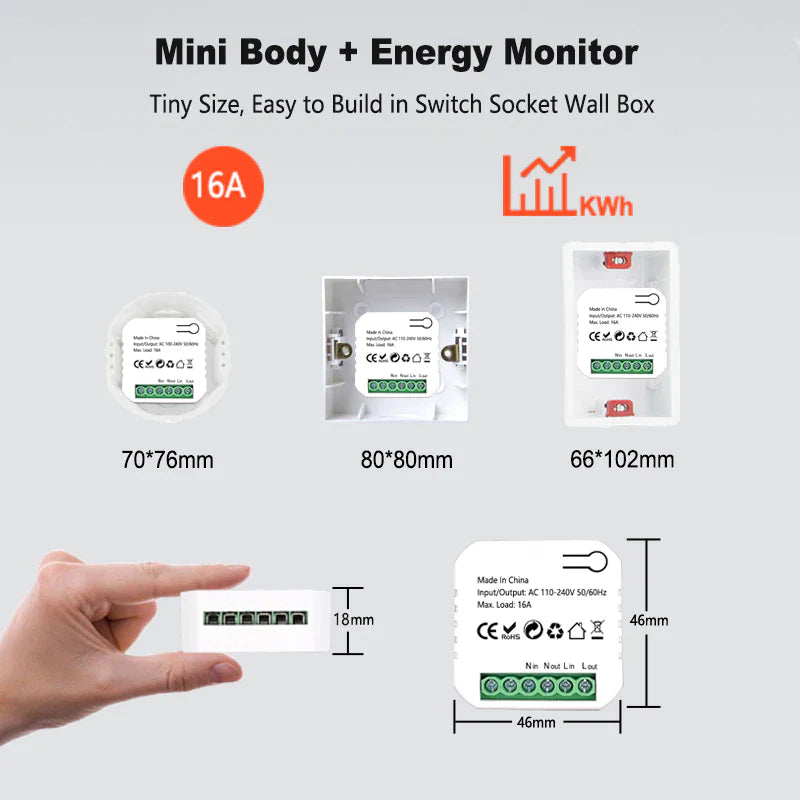

16A Mini Size and Energy Monitor and Electricity Statistic

16A can Load Most Household Devices. Real Time Monitor Power Comsuption and Stastic Electricity Daily Weekly and Save Money

Can be used as ZigBee Repeater , Singal extender

ZigBee Mesh

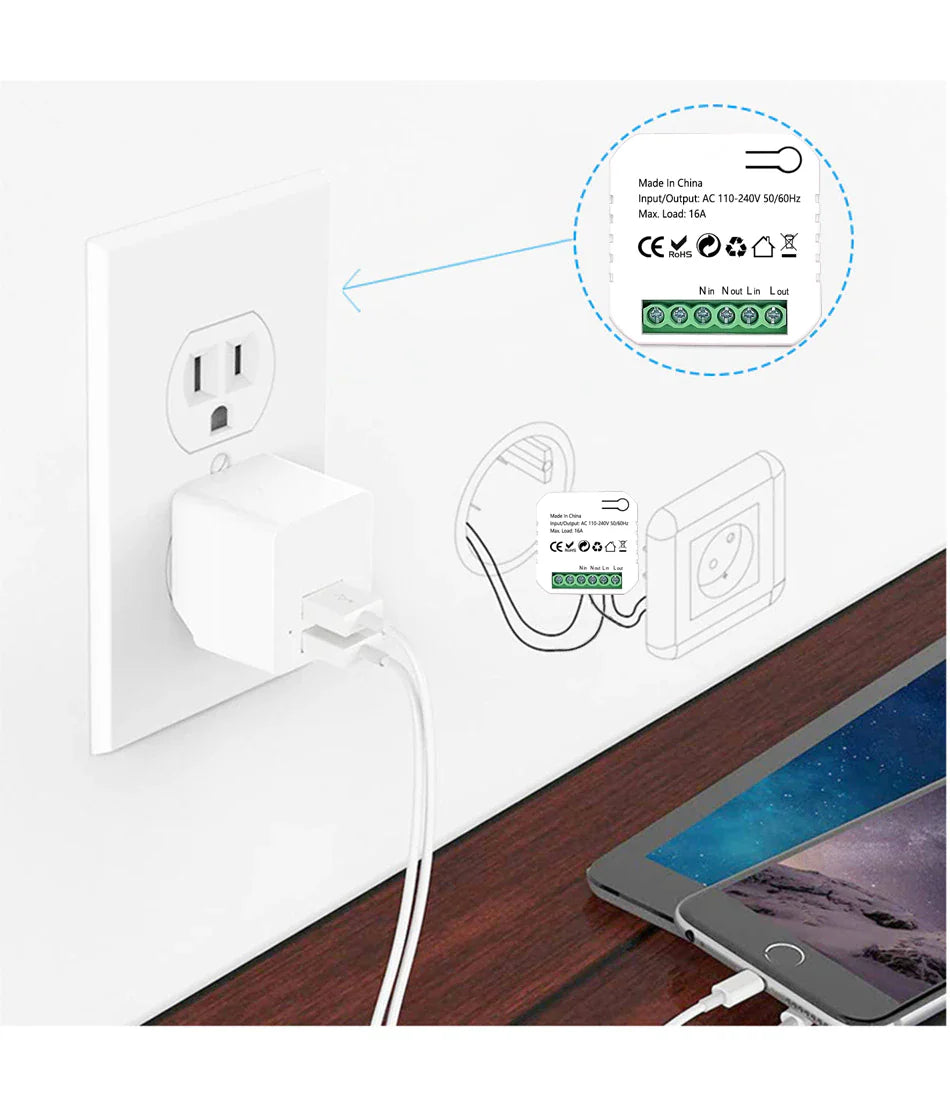

Don't Have to Change Your Current Socket. Enough Tiny Size Module to Be Compatible with Various Socket

DIY Make Your Socket Become Smart
App Remote Control
Voice Control
Timer
Energy Monitor Power Consumption for Your Household Device.

Timer Schedule

Wiring Diagram

You can define if it turns on or off after powercut and back on App

Default ON
Default OFF
Remember the Status as the One before Power Off

You can Install the module in different ways according to your need. Put in socket wall box or din rail mount

The Module is with Din Rail Braket, Enable to Mount on Din Rail
